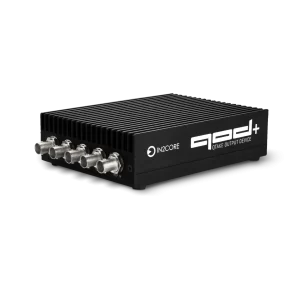

QOD+
3 590,00 € 4 415,70 € incl. 23% VAT
QOD+ provides superior hardware solution for GPU driven video output. It converts DisplayPort output to four SDI outputs supporting all standard frame-rates, up to 60fps.
QOD+ is controlled directly by QTAKE software to provide smooth, jitter-free video output with embedded audio and timecode. This unique custom-made device is compatible with every version of QTAKE, from HDx1 up to HDx4 or with two QOD+ devices up to HDx8/4Kx2.
Features
- 4 independent SDI outputs
- Very low latency of just 1 frame
- SDI embedded audio
- SDI embedded timecode
- Thunderbolt compatible DisplayPort input
- Analog audio input
- Genlock input
- Support for HD-SDI and 3G-SDI formats
- Interlaced, Progressive or PsF output
- 4K output support up to 60fps
- USB control directly from QTAKE software
- DIP switch control for standalone operation
- Single, compact, DC powered unit
- Future-proof design upgradable by firmware
- Fanless design for entirely silent operation
Product Website

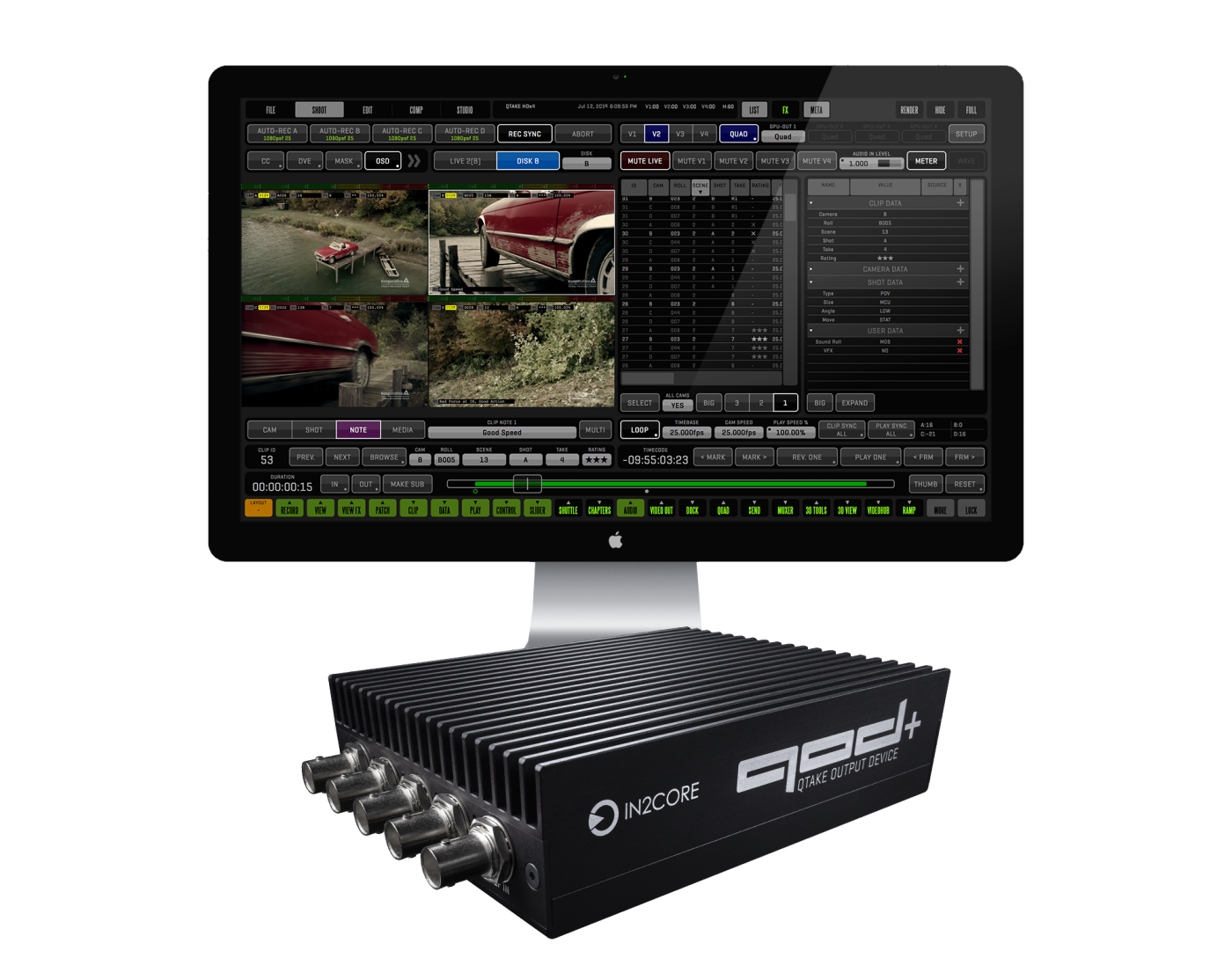

For more information visit the QOD+ User Guide.
| Brand | |
|---|---|
| Video Input | DisplayPort with embedded audio in UHD resolution (3840×2160) |
| Video Output | 4x BNC connectors in following configuration: 4x 3G-SDI with embedded audio |
| Reference Input | 1x BNC connector for HD Tri-level sync |
| Audio Input | Embedded audio in DisplayPort or 3.5mm jack for stereo analog audio |
| Control | Integrated with QTAKE Pro /1.x Video Assist software and Apple hardware, including Apple Silicon |
| Data Ports | USB 2.0 interface with Mini-B connector for QTAKE control communication |
| Power | External power supply 100-240V, 50/60Hz AC input / 12V, 24W max. DC output |
| Dimensions | 169 x 117 x 40 mm (6.65” x 4.61” x 1.58”) |
| Weight | 770 g (1.70 lb) |
- QTAKE Output Device (QOD+)
- Multi-Plug Power Adapter With International Plugs
- USB-C to DisplayPort Cable

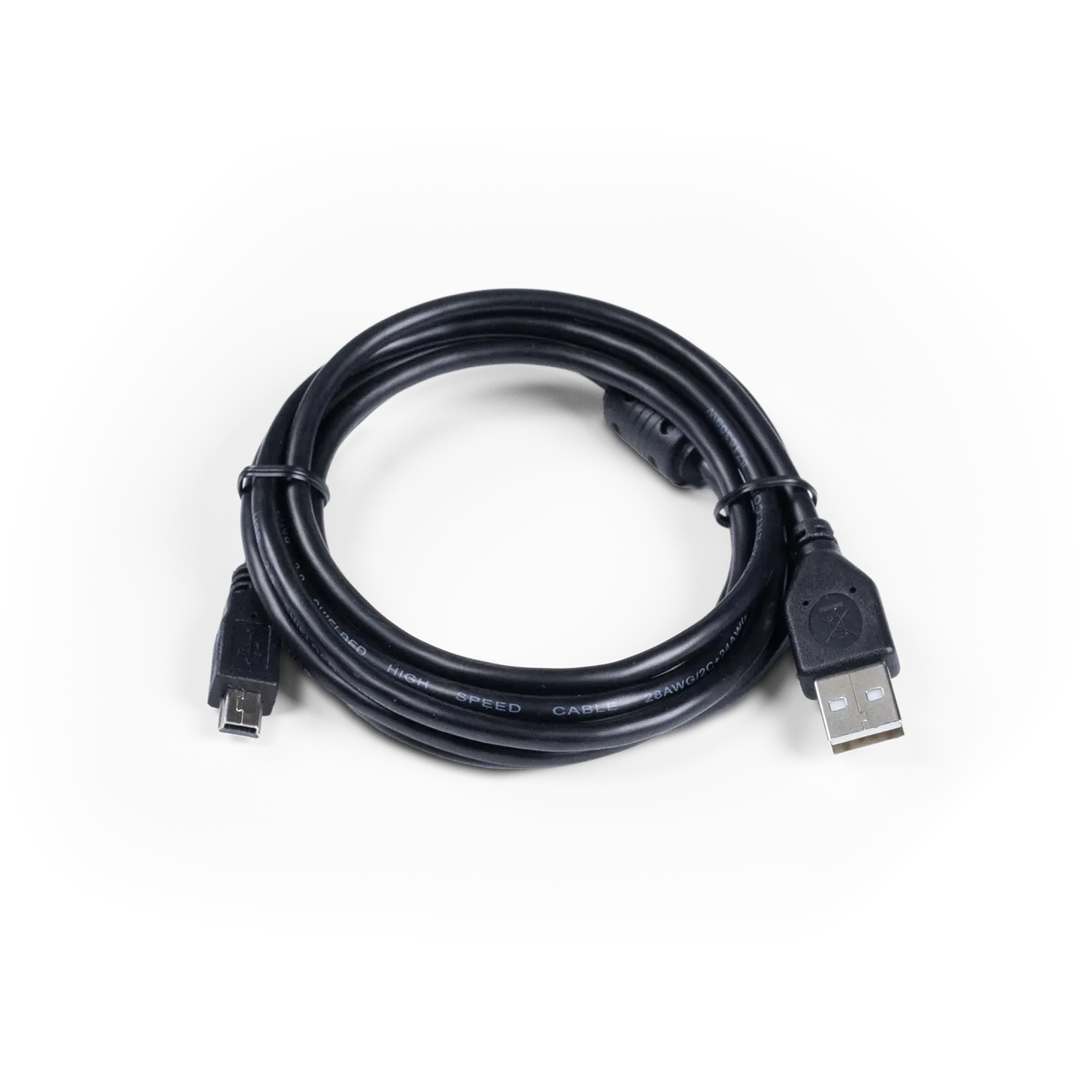

- USB-A to Mini USB Cable
IN2CORE products are available not only directly, but also through a network of authorized resellers who can provide local support and personalized service. If you prefer to work with a representative in your region, please connect with one of our trusted resellers listed below.
- ASK Coporation, Japan, www.ask-media.jp
- Digital Ocean Beijing, P. R. China, www.digitocean.com
- Koil Corporation, South Korea, koil.co.kr
- Nebtek, USA, www.nebtek.com
- Ocean Video, USA, www.oceanvideo.com
- Ovide, Spain, www.ovidesmart.com
Description
QOD+ is controlled directly by QTAKE software to provide smooth, jitter-free video output with embedded audio and timecode. This unique custom-made device is compatible with every version of QTAKE, from HDx1 up to HDx4 or with two QOD+ devices up to HDx8/4Kx2.
Features
- 4 independent SDI outputs
- Very low latency of just 1 frame
- SDI embedded audio
- SDI embedded timecode
- Thunderbolt compatible DisplayPort input
- Analog audio input
- Genlock input
- Support for HD-SDI and 3G-SDI formats
- Interlaced, Progressive or PsF output
- 4K output support up to 60fps
- USB control directly from QTAKE software
- DIP switch control for standalone operation
- Single, compact, DC powered unit
- Future-proof design upgradable by firmware
- Fanless design for entirely silent operation
Product Website
For more information visit the QOD+ User Guide.
Tech Specs
| Brand | |
|---|---|
| Video Input | DisplayPort with embedded audio in UHD resolution (3840×2160) |
| Video Output | 4x BNC connectors in following configuration: 4x 3G-SDI with embedded audio |
| Reference Input | 1x BNC connector for HD Tri-level sync |
| Audio Input | Embedded audio in DisplayPort or 3.5mm jack for stereo analog audio |
| Control | Integrated with QTAKE Pro /1.x Video Assist software and Apple hardware, including Apple Silicon |
| Data Ports | USB 2.0 interface with Mini-B connector for QTAKE control communication |
| Power | External power supply 100-240V, 50/60Hz AC input / 12V, 24W max. DC output |
| Dimensions | 169 x 117 x 40 mm (6.65” x 4.61” x 1.58”) |
| Weight | 770 g (1.70 lb) |
In The Box
- QTAKE Output Device (QOD+)
- Multi-Plug Power Adapter With International Plugs
- USB-C to DisplayPort Cable
- USB-A to Mini USB Cable
