The purpose of the ThunderFace device is to convert DisplayPort to SDI, and it does so with zero latency. The zero latency of ThunderFace is crucial in achieving the lowest possible latency for the entire system when processing live signal. However the overall setup has certain latency caused by the input card for SDI capture, QTAKE image processing, GPU output, and output card (ThunderFace). Each of these steps – except for ThunderFace – adds one frame of latency when processing live signal, resulting in a total of 3 frames. But here’s a tip: try setting ThunderFace to double frequency. The result will still be 25 frames per second, but the latency will be 2 frames because each of the four steps (except the first one) will be processed twice as fast.
ThunderFace 4K Duo
4 190,00 € 5 153,70 € incl. 23% VAT
ThunderFace 4K Duo, the successor of QOD+, is the ultimate hardware device developed by IN2CORE to provide a superior solution for GPU-driven low-latency video output from QTAKE.
All Duo units currently in stock and being sold are eligible for a free software upgrade to Duo+ functionality, which adds the option to operate ThunderFace 4K Duo in an input/output configuration in addition to its output-only configuration.
Video assist profession requires dedicated tools, designed to provide the finest monitoring and playback experience. ThunderFace 4K Duo is an output device designed specifically for QTAKE Pro and Apple Silicon, converting the DisplayPort output from the graphics card into a professional SDI video signal. Sophisticated multiplexing provides up to eight 2K/HD or two 4K/UHD channels using a single cable connection to a host computer.
Features
- Single cable connection to Mac
- Zero-latency processing
- DisplayPort input with embedded audio
- Reference input for genlocked output
- Balanced analog audio input
- Two 4K/UHD or eight 2K/HD SDI output
- Up to 60fps in all formats
- SDI embedded audio
- SDI embedded timecode
- HDR and Dolby Vision metadata support
- USB control directly from QTAKE software
- Future-proof design upgradable by firmware

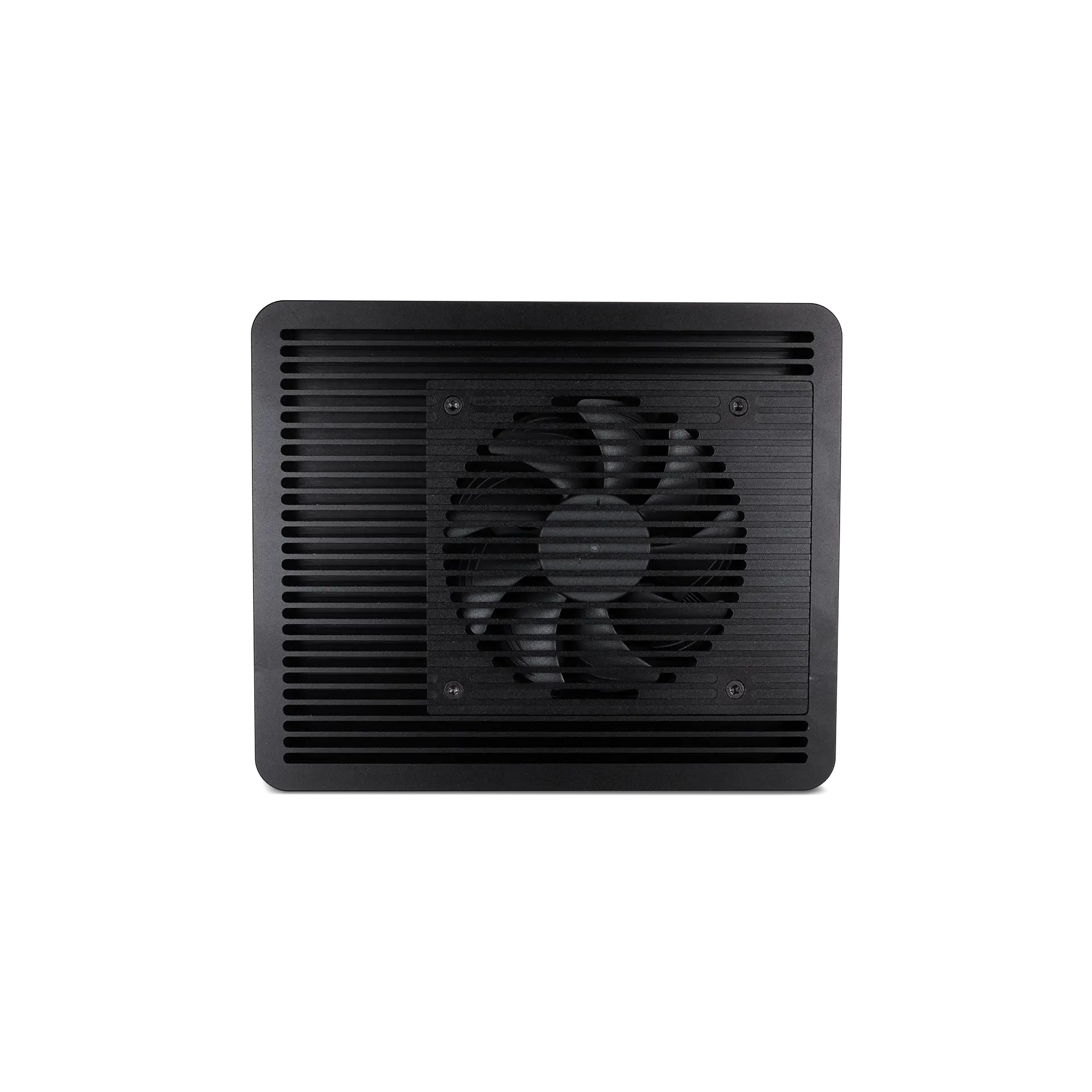

- Ultra-quiet, user-replaceable fan
Upgrading to Duo+
See this article for more information.
| Brand | |
|---|---|
| Video Input | DisplayPort with embedded audio |

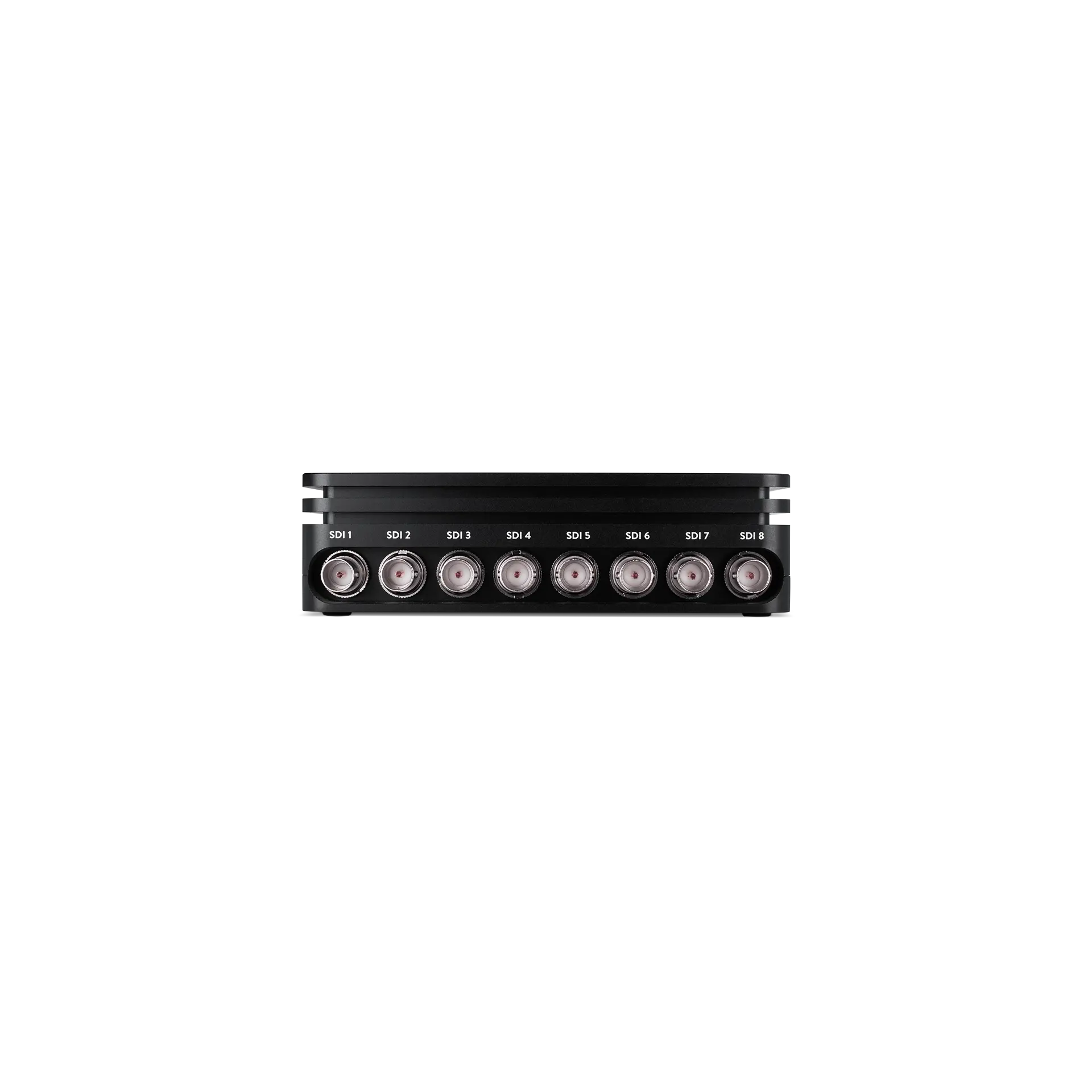

| Video Output | 8x BNC connectors ((75 Ohm impedance) with following configurations: 2x 12G-SDI, 1x 12G-SDI + 4x 3G-SDI or 8x 3G-SDI |

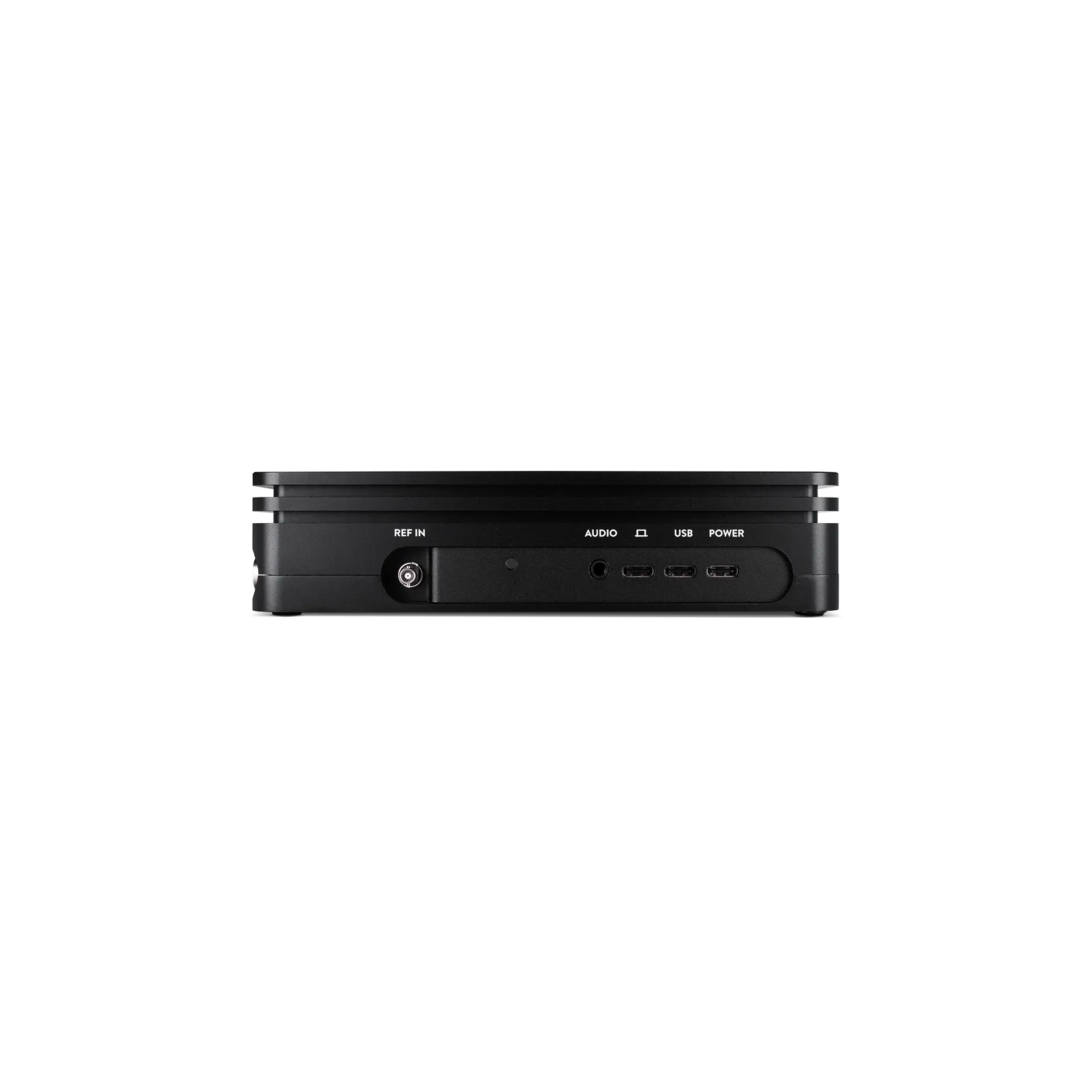

| Reference Input | 1x HD-BNC (miniBNC) connector for HD Tri-level sync |
| Audio Input/Output | 3.5mm audio jack (TRRRS) with following configurations: 2x balanced output, 2x balanced input or 1x balanced output + 1x balanced input |
| Control | Fully integrated with QTAKE Pro Video Assist software and Apple Silicone hardware |
| Data Ports | 1x DisplayPort (USB-C type connector) for connecting to host computer, 1x USB-C connector for connecting external USB devices |
| Power | USB-C connector with PD support (20V/5A 100W profile), 100W USB-C PD power supply included (100-240 VAC, 50-60 Hz) |
| Dimensions | 170 x 144 x 41 mm (6.69” x 5.67” x 1.61”) |
| Weight | 1,1 kg (2.43 lb) |
- ThunderFace 4K Duo Device
- Multi-Plug USB-C Power Adapter With International Plugs
- USB-C to USB-C Power Cable
- USB-C to USB-C Data Cable
The core of ThunderFace has been completely redesigned to ensure long-term compatibility and performance. As a result, ThunderFace 4K Duo works exclusively with QTAKE Pro software and Apple Silicon hardware.
Yes. All ThunderFace 4K Duo units currently in stock and being sold are eligible for a free software upgrade to Duo+ functionality, adding the option to operate the device in an input/output configuration rather than output-only. An upgrade path is also available for Duo units from earlier production batches. Learn more about all available upgrade options.
IN2CORE products are available not only directly, but also through a network of authorized resellers who can provide local support and personalized service. If you prefer to work with a representative in your region, please connect with one of our trusted resellers listed below.
- ASK Coporation, Japan, www.ask-media.jp
- Digital Ocean Beijing, P. R. China, www.digitocean.com
- Koil Corporation, South Korea, koil.co.kr
- Nebtek, USA, www.nebtek.com
- Ocean Video, USA, www.oceanvideo.com
- Ovide, Spain, www.ovidesmart.com
Description
Video assist profession requires dedicated tools, designed to provide the finest monitoring and playback experience. ThunderFace 4K Duo is an output device designed specifically for QTAKE Pro and Apple Silicon, converting the DisplayPort output from the graphics card into a professional SDI video signal. Sophisticated multiplexing provides up to eight 2K/HD or two 4K/UHD channels using a single cable connection to a host computer.
Features
- Single cable connection to Mac
- Zero-latency processing
- DisplayPort input with embedded audio
- Reference input for genlocked output
- Balanced analog audio input
- Two 4K/UHD or eight 2K/HD SDI output
- Up to 60fps in all formats
- SDI embedded audio
- SDI embedded timecode
- HDR and Dolby Vision metadata support
- USB control directly from QTAKE software
- Future-proof design upgradable by firmware
- Ultra-quiet, user-replaceable fan
Upgrading to Duo+
See this article for more information.
Tech Specs
| Brand | |
|---|---|
| Video Input | DisplayPort with embedded audio |
| Video Output | 8x BNC connectors ((75 Ohm impedance) with following configurations: 2x 12G-SDI, 1x 12G-SDI + 4x 3G-SDI or 8x 3G-SDI |
| Reference Input | 1x HD-BNC (miniBNC) connector for HD Tri-level sync |
| Audio Input/Output | 3.5mm audio jack (TRRRS) with following configurations: 2x balanced output, 2x balanced input or 1x balanced output + 1x balanced input |
| Control | Fully integrated with QTAKE Pro Video Assist software and Apple Silicone hardware |
| Data Ports | 1x DisplayPort (USB-C type connector) for connecting to host computer, 1x USB-C connector for connecting external USB devices |
| Power | USB-C connector with PD support (20V/5A 100W profile), 100W USB-C PD power supply included (100-240 VAC, 50-60 Hz) |
| Dimensions | 170 x 144 x 41 mm (6.69” x 5.67” x 1.61”) |
| Weight | 1,1 kg (2.43 lb) |
In The Box
- ThunderFace 4K Duo Device
- Multi-Plug USB-C Power Adapter With International Plugs
- USB-C to USB-C Power Cable
- USB-C to USB-C Data Cable
Resources
FAQs
The purpose of the ThunderFace device is to convert DisplayPort to SDI, and it does so with zero latency. The zero latency of ThunderFace is crucial in achieving the lowest possible latency for the entire system when processing live signal. However the overall setup has certain latency caused by the input card for SDI capture, QTAKE image processing, GPU output, and output card (ThunderFace). Each of these steps – except for ThunderFace – adds one frame of latency when processing live signal, resulting in a total of 3 frames. But here’s a tip: try setting ThunderFace to double frequency. The result will still be 25 frames per second, but the latency will be 2 frames because each of the four steps (except the first one) will be processed twice as fast.
The core of ThunderFace has been completely redesigned to ensure long-term compatibility and performance. As a result, ThunderFace 4K Duo works exclusively with QTAKE Pro software and Apple Silicon hardware.
Yes. All ThunderFace 4K Duo units currently in stock and being sold are eligible for a free software upgrade to Duo+ functionality, adding the option to operate the device in an input/output configuration rather than output-only. An upgrade path is also available for Duo units from earlier production batches. Learn more about all available upgrade options.
