The primary distinction between ScreenPort SDI Pro and ScreenPort SDI+ lies in their design, power options, and suitability for different production environments. ScreenPort SDI+ is tailored for portable use, featuring hot-swappable NP-F battery slots and USB-C power, making it ideal for personal or lightweight setups. ScreenPort SDI Pro is engineered for more demanding, on-set workflows. It features a rugged black anodized aluminum enclosure with multiple mounting options, designed to be mounted directly on the camera. The Pro model replaces battery slots with industry-standard LEMO connectors, allowing it to be powered directly from the camera.
ScreenPort SDI+
1 339,00 € 1 646,97 € incl. 23% VAT
ScreenPort SDI+ turns your iPad into a professional SDI monitor & recorder. Perfect for run & gun video assist, script supervisors and video engineers. ScreenPort SDI+ supports transfer of metadata and is fully integrated with the QTAKE ecosystem.

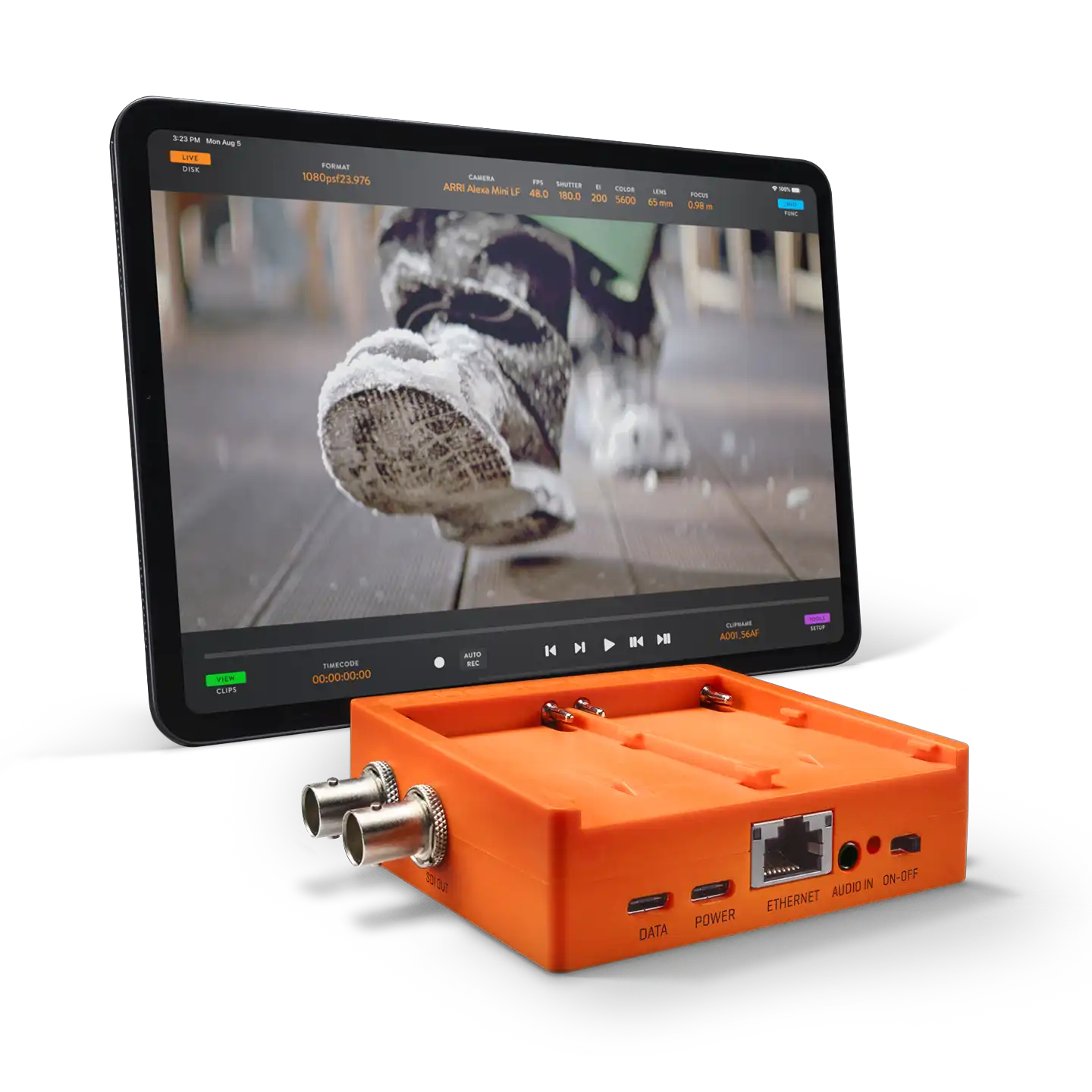

ScreenPort SDI+ adds video input to iPad, iPhone or Mac and turns it into professional 3G-SDI monitor capable of capturing up to 1080p60 video feed with your personal portable device. ScreenPort app provides video controls, analysis and recording tools unmatched by most professional monitors. Also compatible with the QTAKE Monitor app.
Features
- Video, audio, metadata monitoring & recording
- SDI embedded or analog audio capture
- Auto-recording using camera SDI flags
- Streaming to remote monitors over internet
- Compatible with QTAKE applications
- Battery-powered operation
- Bus-powered operation when using Mac
- Wired and wireless connection to host devices
- Preloaded and custom 3D LUT processing
- Predefined and custom frame-lines
- Waveform, vectorscope and histogram analysis
- Focus peaking and customizable false color
- Future-proof design upgradable by firmware
Product Website
For more information visit screenport.io.
| Brand | |
|---|---|
| Power | USB-C power adapter, External batteries |
| Video Input | 3G-SDI |
| Video Output | 3G-SDI loop-through |
| Audio Input | 3.5 mm unbalanced stereo, Balanced mono |
| Data Ports | WiFi (2.4/5.0 GHz, 802.11 a/b/g/n/ac), Ethernet, USB-C |
| Dimensions | 113 x 83 x 30 mm (4.45“ x 3.27” x 1.18”) |
| Weight | 160 g (0.35 lb) |

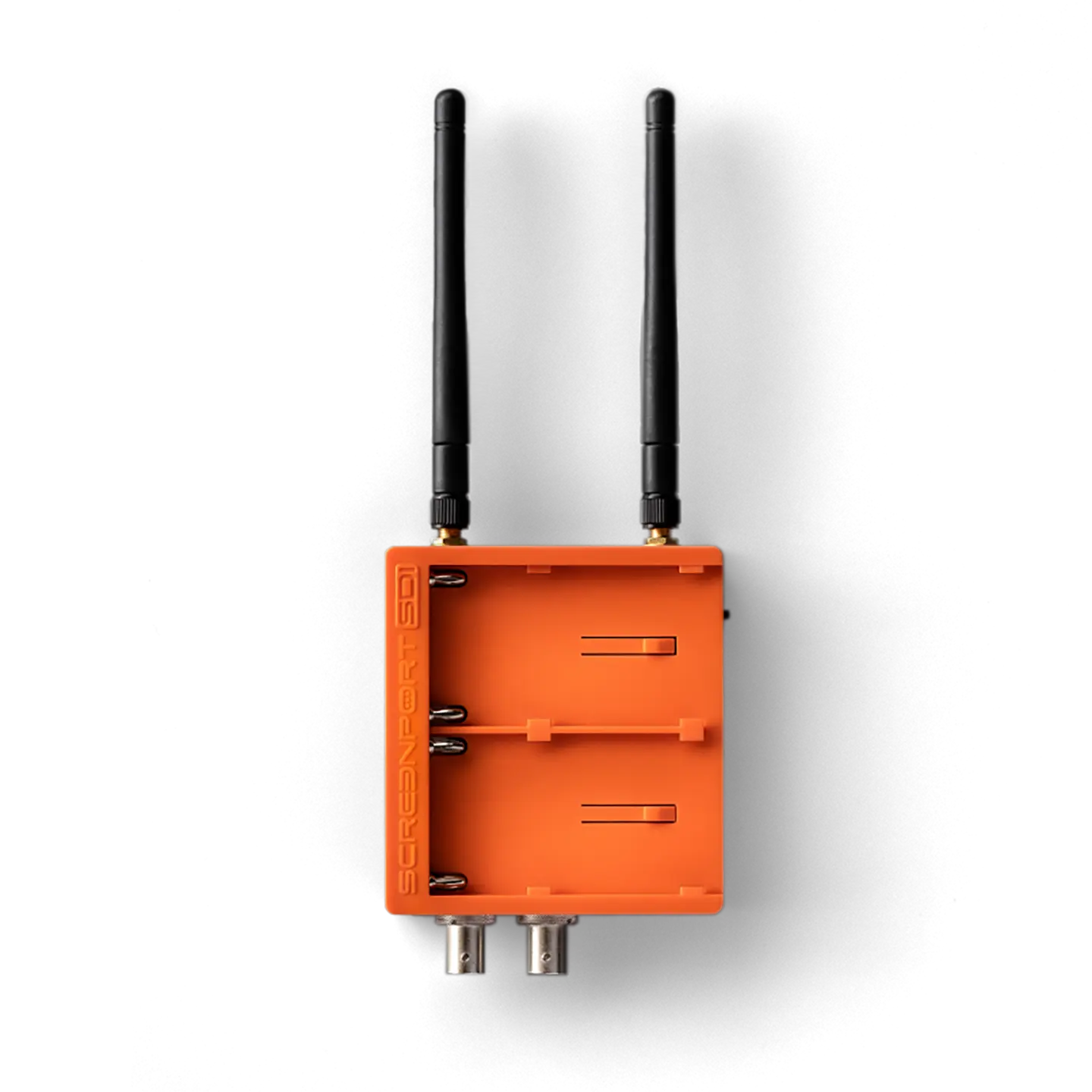

- ScreenPort SDI+ Device
- Two Dual-Band 2.4/5.0 GHz Wi-Fi Antennas

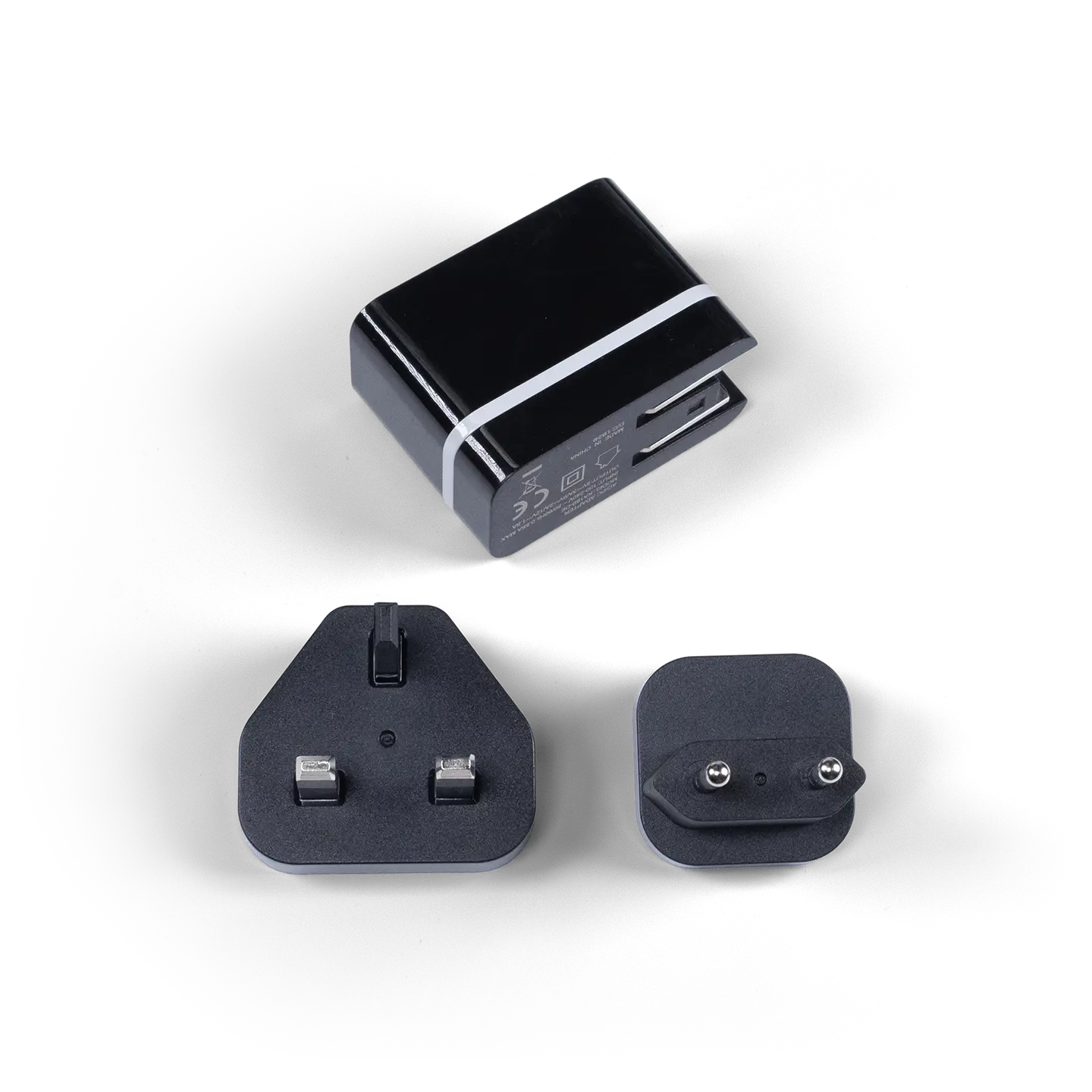

- Multi-Plug USB-C Power Adapter With International Plugs
- USB-C to USB-C Power/Data Cable
- USB-C to Lightning Power/Data Cable
IN2CORE products are available not only directly, but also through a network of authorized resellers who can provide local support and personalized service. If you prefer to work with a representative in your region, please connect with one of our trusted resellers listed below.
- ASK Coporation, Japan, www.ask-media.jp
- Digital Ocean Beijing, P. R. China, www.digitocean.com
- Koil Corporation, South Korea, koil.co.kr
- Nebtek, USA, www.nebtek.com
- Ocean Video, USA, www.oceanvideo.com
- Ovide, Spain, www.ovidesmart.com
Reviews
Description
ScreenPort SDI+ adds video input to iPad, iPhone or Mac and turns it into professional 3G-SDI monitor capable of capturing up to 1080p60 video feed with your personal portable device. ScreenPort app provides video controls, analysis and recording tools unmatched by most professional monitors. Also compatible with the QTAKE Monitor app.
Features
- Video, audio, metadata monitoring & recording
- SDI embedded or analog audio capture
- Auto-recording using camera SDI flags
- Streaming to remote monitors over internet
- Compatible with QTAKE applications
- Battery-powered operation
- Bus-powered operation when using Mac
- Wired and wireless connection to host devices
- Preloaded and custom 3D LUT processing
- Predefined and custom frame-lines
- Waveform, vectorscope and histogram analysis
- Focus peaking and customizable false color
- Future-proof design upgradable by firmware
Product Website
For more information visit screenport.io.
Tech Specs
| Brand | |
|---|---|
| Power | USB-C power adapter, External batteries |
| Video Input | 3G-SDI |
| Video Output | 3G-SDI loop-through |
| Audio Input | 3.5 mm unbalanced stereo, Balanced mono |
| Data Ports | WiFi (2.4/5.0 GHz, 802.11 a/b/g/n/ac), Ethernet, USB-C |
| Dimensions | 113 x 83 x 30 mm (4.45“ x 3.27” x 1.18”) |
| Weight | 160 g (0.35 lb) |
In The Box
- ScreenPort SDI+ Device
- Two Dual-Band 2.4/5.0 GHz Wi-Fi Antennas
- Multi-Plug USB-C Power Adapter With International Plugs
- USB-C to USB-C Power/Data Cable
- USB-C to Lightning Power/Data Cable
Resellers
IN2CORE products are available not only directly, but also through a network of authorized resellers who can provide local support and personalized service. If you prefer to work with a representative in your region, please connect with one of our trusted resellers listed below.
- ASK Coporation, Japan, www.ask-media.jp
- Digital Ocean Beijing, P. R. China, www.digitocean.com
- Koil Corporation, South Korea, koil.co.kr
- Nebtek, USA, www.nebtek.com
- Ocean Video, USA, www.oceanvideo.com
- Ovide, Spain, www.ovidesmart.com
Resources
FAQs
The primary distinction between ScreenPort SDI Pro and ScreenPort SDI+ lies in their design, power options, and suitability for different production environments. ScreenPort SDI+ is tailored for portable use, featuring hot-swappable NP-F battery slots and USB-C power, making it ideal for personal or lightweight setups. ScreenPort SDI Pro is engineered for more demanding, on-set workflows. It features a rugged black anodized aluminum enclosure with multiple mounting options, designed to be mounted directly on the camera. The Pro model replaces battery slots with industry-standard LEMO connectors, allowing it to be powered directly from the camera.
Stephen 🇺🇸 –
These two new Screenport+‘s are awesome! Thank you so much for making this very needed device. I actually am only using them to turn two iPads Pro into SDI monitors, I’m not using the recording features of the app yet but I will soon.
Lee 🇺🇸 –
No carts, no stands — just a streamlined setup that worked flawlessly on crowded NYC streets. Learn more in the “From Sidewalk to Sprinter: Street Interviews Made Seamless With ScreenPort SDI” use case.
